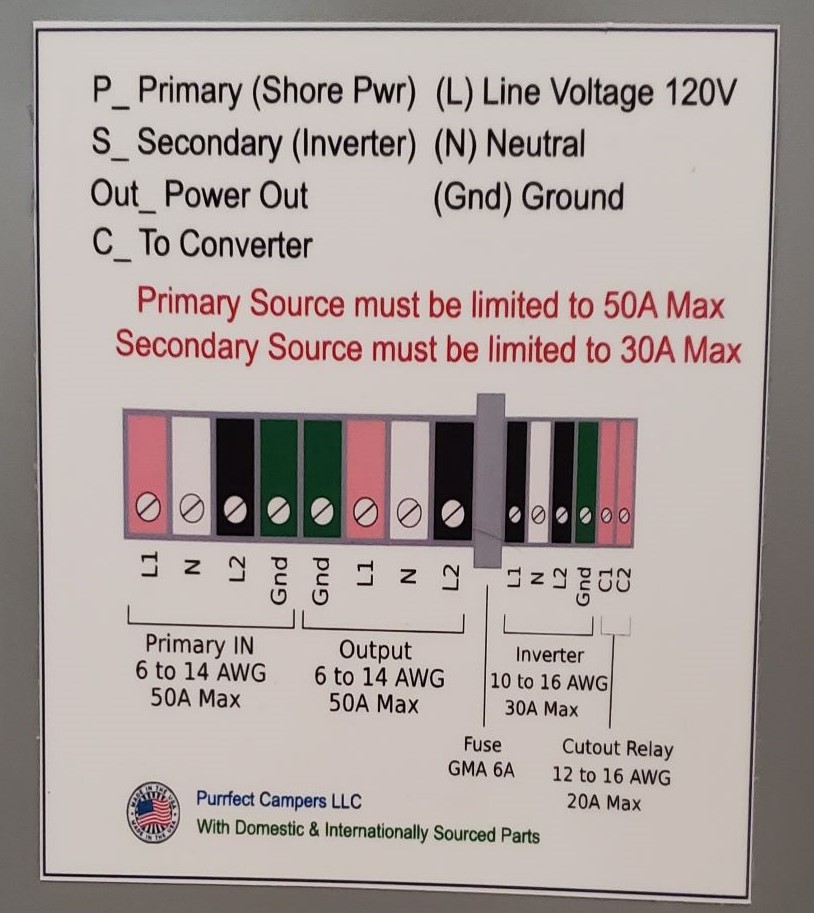

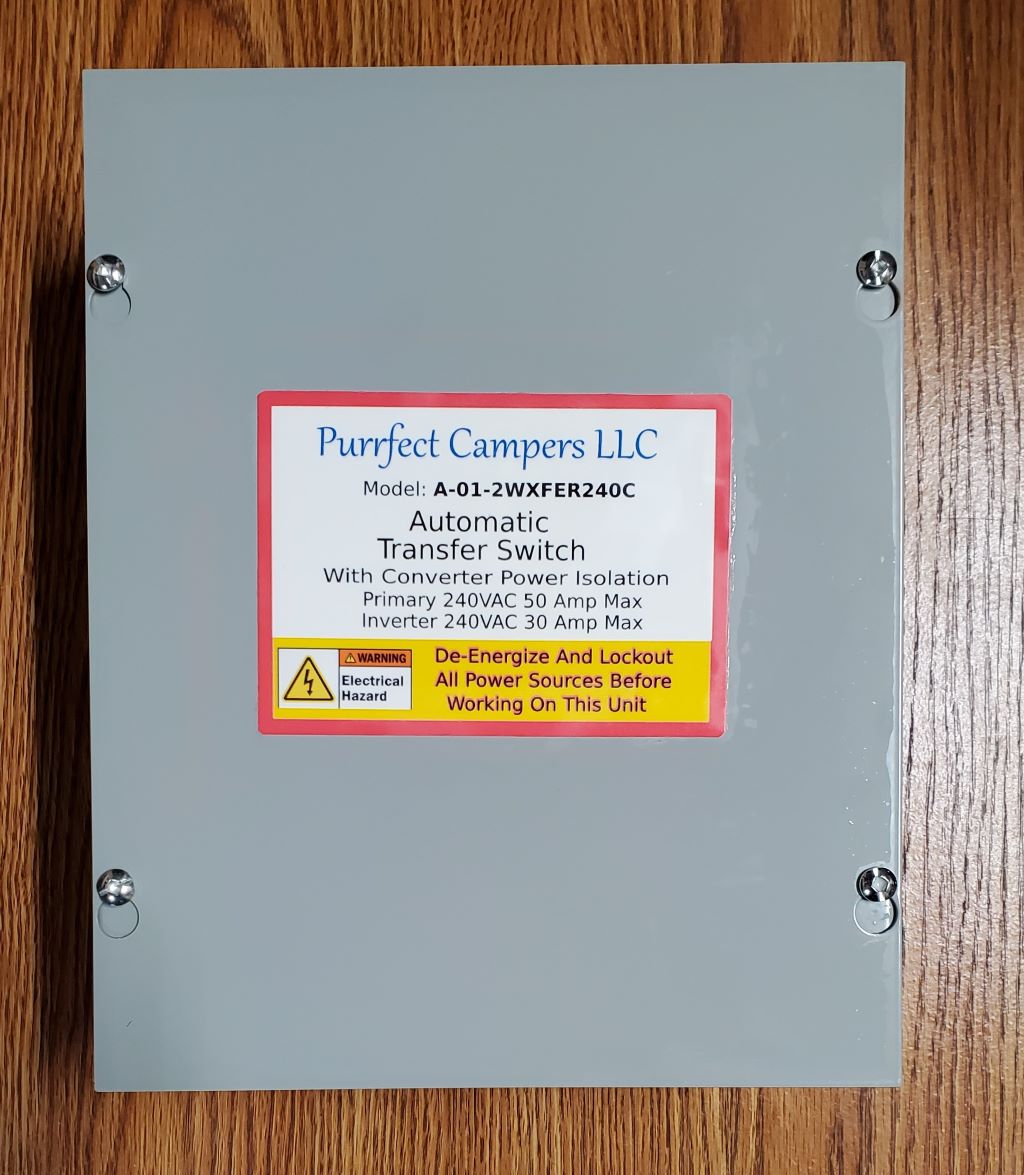

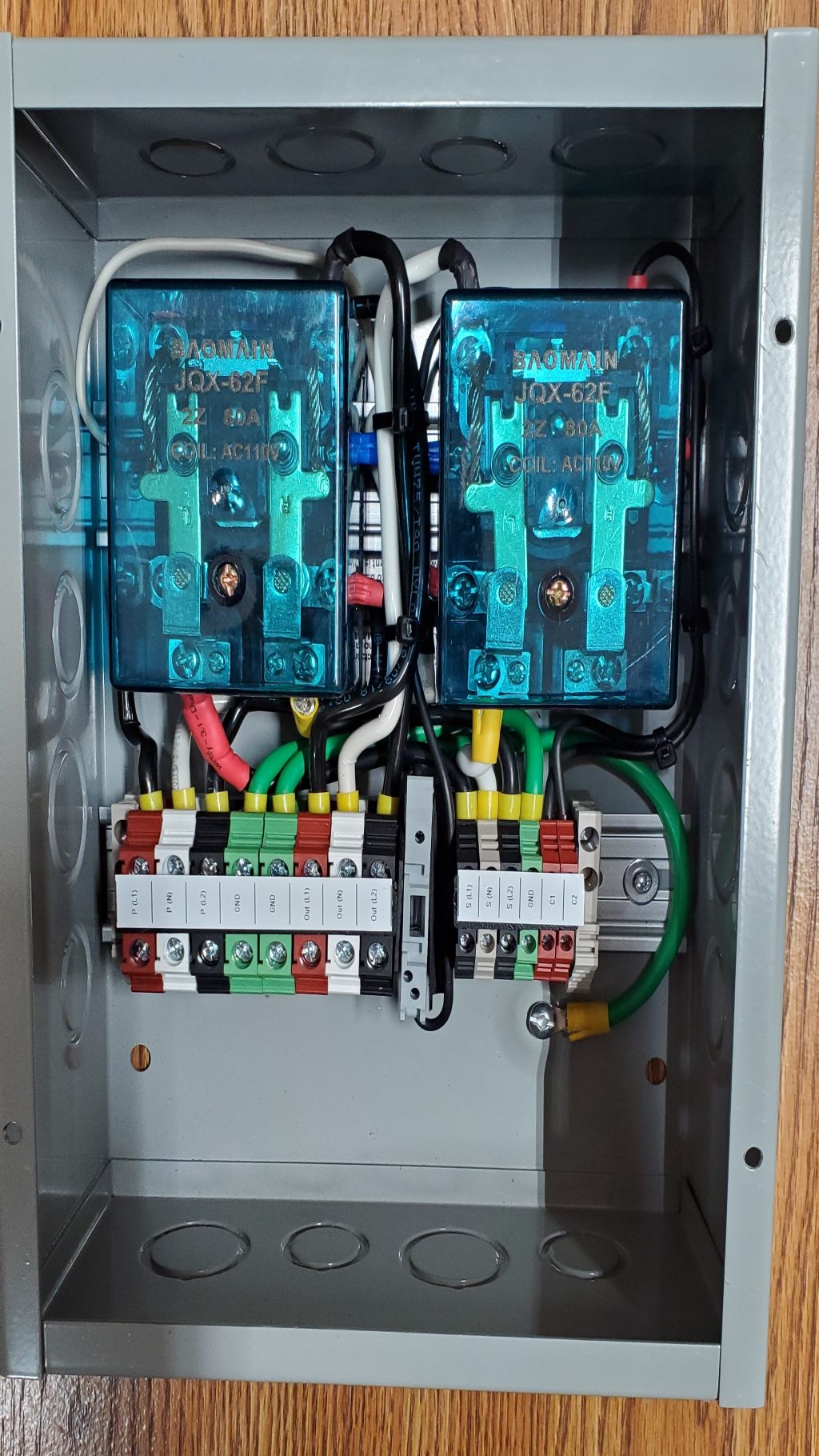

With a rated amperage of 50A (for shore power & output), 30A for Inverter and voltage of 240/120VAC, this switch is suitable for a wide range of applications. It comes with a 90-day warranty and is manufactured in the United States with quality parts sourced domestically as well as internationally.

• Use to automatically swap power between shore power and an inverter.
• Output for a Converter or Battery Charger is only active when shore power is present
• Fully automatic with no fuss and no worries.
• 50A Rating @ 240 or 120VAC for shore power and output
• 30A Rating @ 240 or 120VAC for inverter
• 20A Rating @ 120VAC for converter/charger cutout
• 50A Connections designed for up to 6 AWG SJTW or 6 AWG 105 marine rated cable
• 30A Inverter input designed for up to 10 AWG SJTW or 10 AWG 105/30 marine rated cable
• (Output to converter, use: 16, 14 or 12 AWG SJTW or marine rated cable)
• NOT for outdoor use or in wet locations

With a rated amperage of 50A and voltage of 240/120VAC, this switch is suitable for a wide range of applications. It comes with a 90-day warranty and is manufactured in the United States with quality parts sourced domestically as well as internationally.

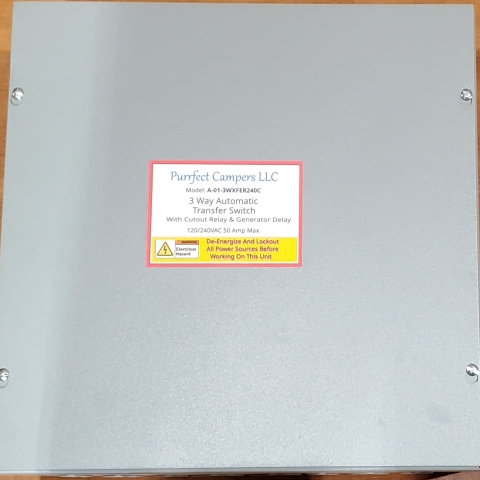

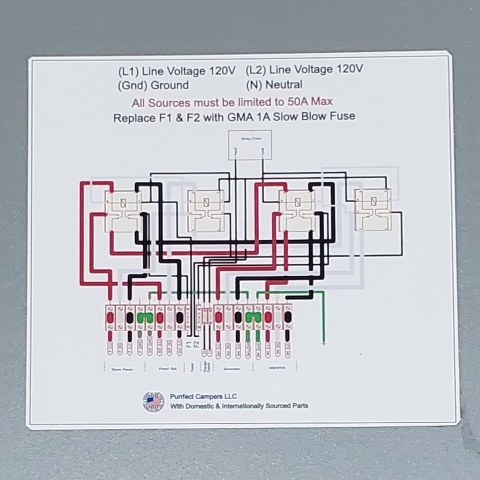

• Use to automatically swap power between shore power and generator.
• Fully automatic with no fuss and no worries.
• 50A Rating @ 240 or 120VAC for shore power, generator and output
• Connections designed for up to 6 AWG SJTW or 6 AWG 105/30 marine rated cable
• 10 Second generator swap over delay can be adjusted to 1 second or more in 1 sec increments
• NOT for outdoor use or in wet locations

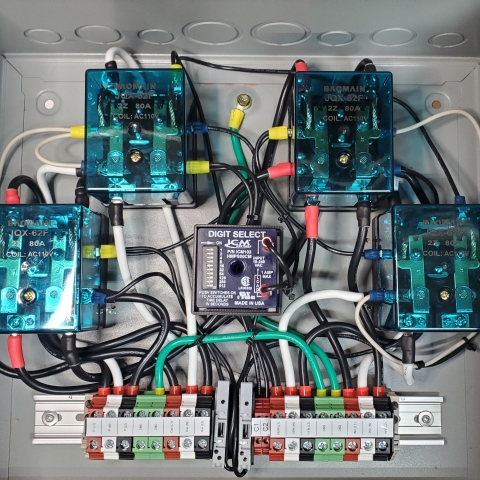

With a rated amperage of 50A (for shore power, generator & output), 30A for Inverter and voltage of 240/120VAC, this switch is suitable for a wide range of applications. It comes with a 90-day warranty and is manufactured in the United States with quality parts sourced domestically as well as internationally.

• Use to automatically swap power between shore power, generator and an inverter.
• Output for a Converter or Battery Charger is only active when shore power or generator is present
• Fully automatic with no fuss and no worries.
• 50A Rating @ 240 or 120VAC for shore power, generator and output
• 30A Rating @ 240 or 120VAC for inverter
• 20A Rating @ 120VAC for converter/charger cutout
• 50A Inputs & Output Designed for up to 6 AWG SJTW or 6 AWG 105/30 marine rated cable
• 30A Inverter Input Designed for up to 10 AWG SJTW or 10 AWG 105/30 marine rated cable
• (Output to converter, use: 16, 14 or 12 AWG SJTW or marine rated cable)
• NOT for outdoor use or in wet locations

Works with outlet plug in style converters/battery chargers and with the following transfer switches:

• A-01-2WXFER120C
• A-01-3WXFER120C
• A-01-2WXFER240C
• A-01-3WXFER240C

Adapter is connected to transfer switch using 14-2 or 14-3 SJTW cable
Converter/Battery Charger plugs into adapter
Adapter plugs into wall outlet
Details:

• Male and female cords are approximately 1 ft in length
• Overall cord length is slightly less than 3 ft
• Rated 15A (up to 1800W Chargers)
• 14 AWG SJTW power cord
• Made in the USA by Purrfect Campers LLC
